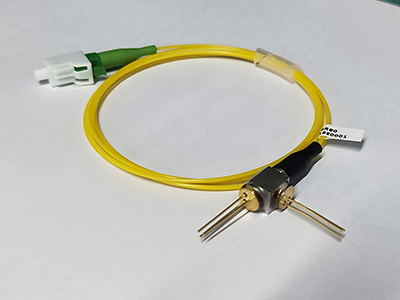

Features
- InGaAs 3PIN PD
- Low voltage operation
- Low capacitance and high speed
- Low dark current
Applications
CWDM optical transmission system
Absolute Maximum Ratings
| Parameters | Symbol | Min. | Max. | Unit |
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Topr | -40 | 85 | ℃ |
| Reverse Voltage | VR | - | 30 | V |
| Forward Current | IF | - | 10 | mA |
| Lead Soldering (Temperature)/(Time) | - | - | 260/10 | ℃/Sec |
Electrical and Optical Characteristics at TC=25±3℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Wavelength | λ | 1310 | 1330 | 1350 | nm | - |
| 1260 | 1270 | 1290 | ||||
| Small Signal Bandwidth | BW | 2.5 | - | - | GHz | Vr=5V |
| Capacitance | C | - | 0.6 | - | pF | f =1MHz |
| Dark Current | Id | - | 0.2 | 0.5 | nA | Vr=5V |
| Isolation | Iso1 | 35 | - | - | dB | λ=1270nm |
| 35 | - | - | λ=1330nm | |||
| Responsivity | R | 0.85 | 0.9 | - | A/W | λ=1270,1330nm |
| Optical Return Loss | ORL | 30 | 40 | - | dB | SMF |
| Second Order Inter-modulation Distortion | IMD2 | - | - | -70 | dBc | - |
| Third Order Inter-modulation Distortion | IMD3 | - | - | -80 | dBc | - |
