Features
- Low dark current, High linearity, High reliability

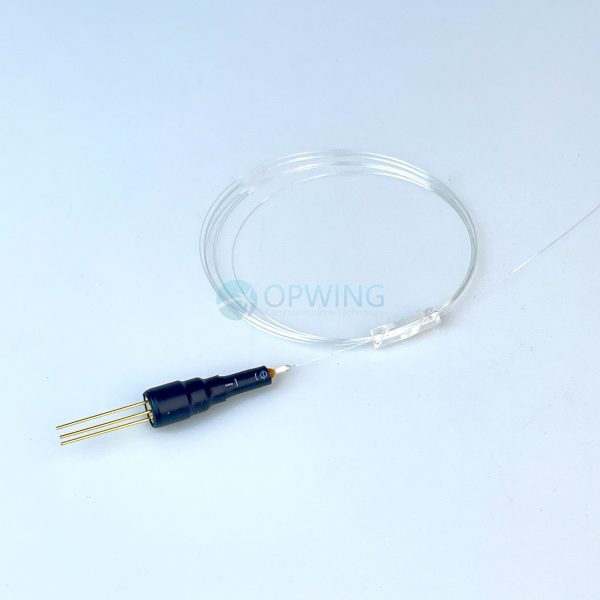

- Coaxial Package,High reliability. Panda type 5/80um polarization maintaining fiber
- Compliant with RoHS standard
Application
- Applied to fiber optic gyroscopes, optical instruments, etc
Optical and Electrical Characteristics(Tc=25℃)
|
Parameter |
Symbol |
Test condition |
Value |
Unit |
|
Operating Wavelength |
λ |
/ |
1310±40 |
nm |
|
Responsibility |
R |
Vr=5V λ=1310nm |
≥0.8 |
A/W |
|
Dark Current |
Id |
Vr=5V 25℃ |
≤1.0 |
nA |
|
Extinction ratio |
ER |
/ |
≥20 |
dB |
|
-3dB Bandwidth |
BW |
RL=50Ω,Vr=5V |
≥2.0 |
GHz |
|
Return Loss |
RL |
λ=1310nm |
≥45 |
dB |
|
Operating Temperature |
Top |
/ |
-20 ~ +85 |
℃ |
|
Storage Temperature |
Tstg |
/ |
-40 ~ +85 |
℃ |
|
ESD |
— |
/ |
≥200 |
V |
|
Fiber Type |
PM5/80um Φ166um PM Fiber |
|||
|
Package Size |
Φ5.6×L20 mm |
|||
Pin Assignment & Dimensions
（Unit：mm）
